Name: XH7126 CNC Metal Milling Machine 3 Axis 800x260mm With 4KW Servo Motor
Brand: Matsumoto
Price: 11500 USD

Brand Name : Matsumoto

Model Number : XH7126

Certification : CE, ISO 9001

Place of Origin : China

MOQ : 1

Price : $11500-13000

Payment Terms : T/T

Delivery Time : 15 working days

Packaging Details : plywood case

Model NO. : XH7126

Spindle Taper : BT40

Range of Spindle Speed(r.p.m) : 8000rpm

X/Y/Z Axis Travel : 550/300/450mm

Table Size : 800*260mm

Contact Now

XH7126 CNC Milling Machine Metal 3 Axis CNC Milling Machine

Description:

1. High precision linear guide rail and screw.

2. Taiwan-made spindle unit, 6000/8000rpm speed available.

3. Taiwan OKADA funnel type 10t/12t ATC can be choosen.

4. Reliable control system: Fanuc, Mitsubishi, Gsk.

5. Automatic central lubrication system.

Specification	XH7126
Table size	800*260mm
T-slot(NWD)	3/14/78mm
X/Y/Z travel	550/300/450mm
Disntance from spindle surface to worktable	80-530mm
Distance from spindle center to the column	350mm
Rapid feed speed(X/Y/Z)	20/20/18m/min
AC servo motor torque(X/Y/Z)	6/6/10N.m
Main motor	4KW Servo motor
Spindle speed	8000rpm
Spindle taper	BT40-120
Positioning accuracy	0.01mm
Repositioning accuracy	0.008mm
Linear guide rail	XY30 Y35ball
Machine weight	2000kg
Overall size	220019002200mm(Remove Z-axis motor)

	Workbench High-frequency quenching for better rigidity
Spindle Taiwanese brand high-quality spindle, VOLIS/OKADA/ROYAL/AIMACH, etc. Standard configuration: 8000 rpm Optional configuration: 10000/12000 rpm

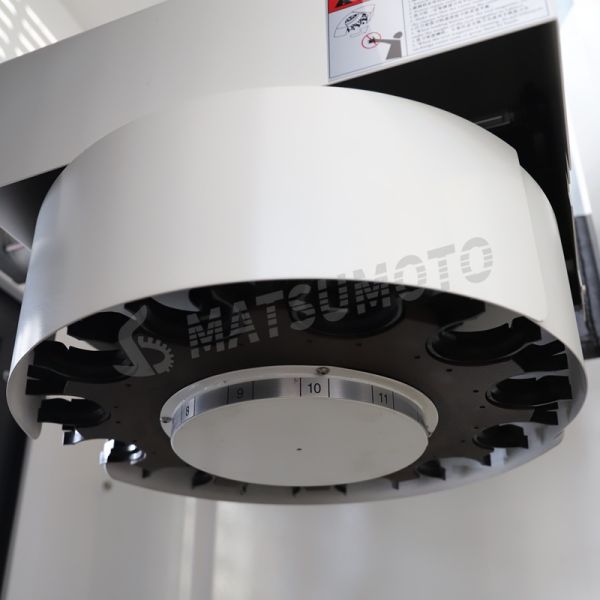

	Automatic tool changer Standard configuration: 16-tool hat-type tool magazine Optional configuration: 24-tool arm-type tool magazine

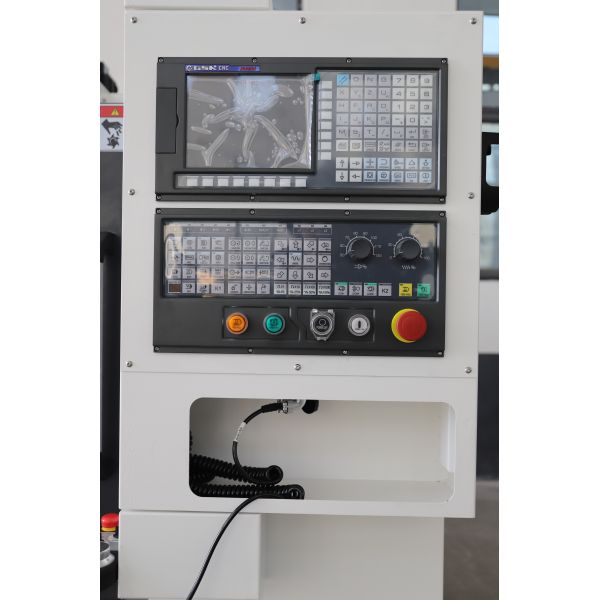

Control system Standard configuration: GSK Optional configuration: Fanuc/ Syntec/ Mitsubisin

XH7126 CNC Metal Milling Machine 3 Axis 800x260mm With 4KW Servo Motor
